XD™ Lens Elements Extra-low dispersion (XD) glass increases resolution and color fidelity, resulting in crisp, sharp images.
Fully Multi-Coated Proprietary coatings increase light transmission with multiple anti-reflective coatings on all air-to-glass surfaces.
First Focal Plane Reticle Scale of reticle remains in proportion to the zoomed image. Constant subtensions allow accurate holdover and ranging at all magnifications.
Glass-Etched Reticle Allows for intricate reticle design. Protected between two layers of glass for optimum durability and reliability.
ArmorTek ® Ultra-hard, scratch-resistant coating protects exterior lenses from scratches, oil and dirt.
Shockproof Rugged construction withstands recoil and impact.
Waterproof O-ring seals prevent moisture, dust and debris from penetrating for reliable performance in all environments.
Fogproof Nitrogen gas purging prevents internal fogging over a wide range of temperatures.
Tube Size 34 mm diameter provides maximized internal adjustment and strength.
Side Focus Adjustment located on left side of turret housing is easily accessible from shooting position. Provides optimal image focus and parallax removal.
Aircraft-Grade Aluminum Constructed from a solid block of aircraft-grade aluminum for strength and rigidity.
Tactical Locking Turrets Integrated locking mechanism prevents accidental adjustments. Turrets provide fast, accurate, easily read elevation and windage adjustments.
Fast Focus Eyepiece Allows quick and easy reticle focusing.
Throw Lever The included throw lever can be installed for quick and easy magnification adjustments.
RevStop™ Zero System Patented streamlined design offers an easy to set, rock-solid return to zero after turret adjustments.

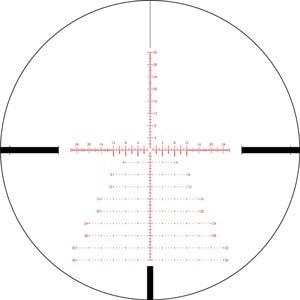

Hash-marked reticle using MRAD-based subtension lines and floating wind hold dots for ranging, holdover, and windage corrections.
Objective Lens Diameter 56 mm
Eye Relief 3.7 inches
Field of View 24.0 - 5.2 ft @100 yds
Tube Size 34 mm
Elevation Turret Style Locking/Zero Stop
Windage Turret Style Locking
Adjustment Graduation .1 MRAD
Travel Per Rotation 10 MRAD
Max Elevation Adjustment 31 MRAD
Max Windage Adjustment 23 MRAD
Parallax Setting 15 yards to infinity
Length 37 cm / 14.6 inches
Weight 860 grams / 30.4 oz
