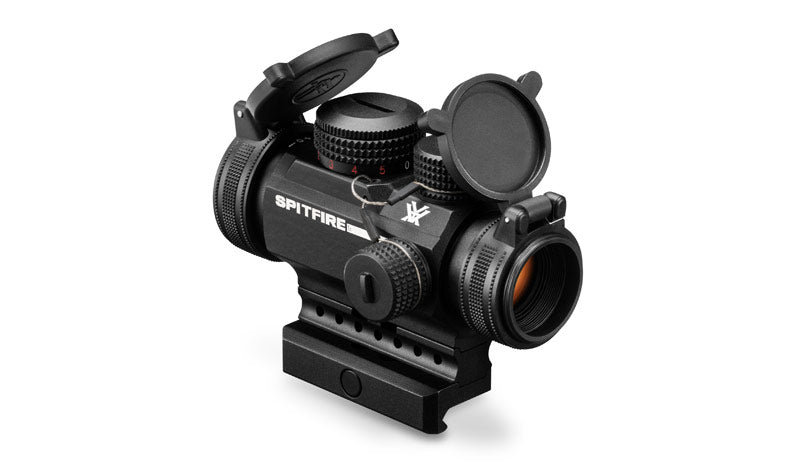

Designed specifically for the AR platform, the 1x Spitfire combines an impressive array of high performance features into a rugged, ultra-compact package.
When fast target acquisition in close to medium range shooting applications is a priority, the Spitfire excels.
Laced with advanced features, the sophisticated prism based design allows for a more compact optical system without sacrificing optical quality.
The DRT (Dual Ring Tactical) reticle is etched directly on the prism to ensure consistent point of aim at all times with selectable red/green illumination and five intensity levels to match specific conditions.

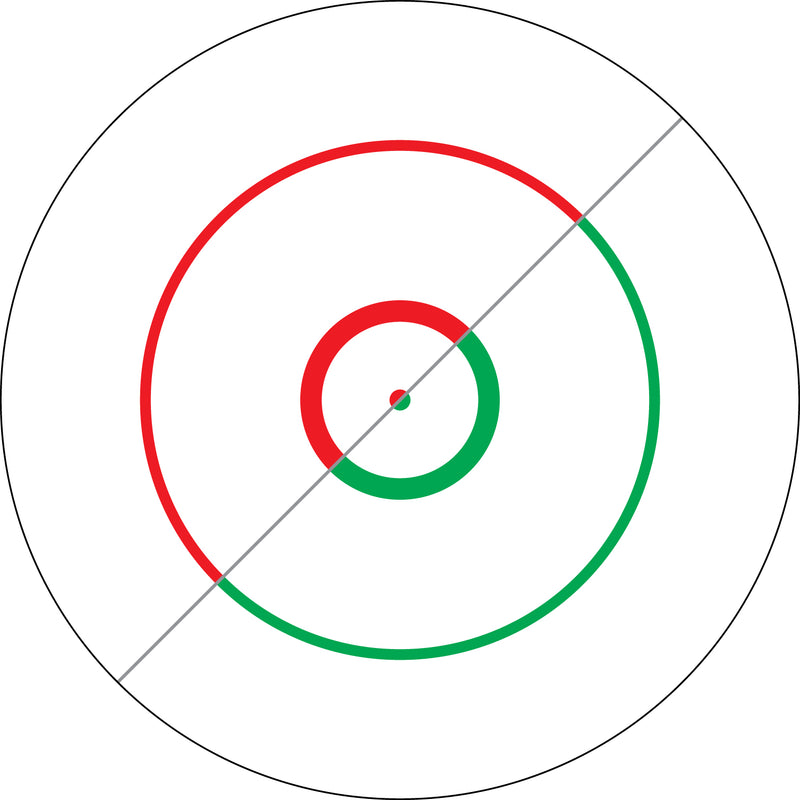

DRT (MOA) Reticle
The DRT (Dual Ring Tactical) reticle is designed for rapid shooting at close distances. Etched directly on the prism to ensure consistent point of aim at all times, the dual ring reticle design pulls the eye into instant alignment with the reticle center and target. Also features selectable red/green illumination with five intensity levels to match specific conditions.
Fully Multi-Coated - Multiple anti-reflective coatings on all air-to-glass surfaces increase light transmission.
Prism Based Design - Delivers sharp optics and allows for unique reticle designs that are visible with or without illumination.
One Piece Chassis - Compact and lightweight.
Waterproof - O-ring seals prevent moisture, dust and debris from penetrating, ensuring reliable performance in all environments.
Fogproof - Nitrogen Gas Purging delivers fogproof, waterproof performance.
Shockproof - Rugged construction withstands recoil and impact.
Hard Anodized Finish - Highly durable low glare matte finish.
Operating Temperature Rated from -30 degrees to 50 degrees Celsius.
Variable Mount Heights - Comes mounted at a lower 1/3 co-witness height of 40.4 mm from the optic center to base surface. Remove the mount riser if a lower 30 mm mounted height is desired.
Adjustable Brightness - Provides five levels of brightness intensity with red and green illumination settings.
Red/Green Reticle Option - Allows shooters a choice of dot colour.
Battery Life - Typical battery life is 250 hours at maximum brightness and 3,000 hours at minimum brightness setting.
Eye Relief 3.7 inches
Field of View 75 feet/100 yards
Adjustment Graduation 1 MOA
Max Elevation Adjustment 120 MOA
Max Windage Adjustment 120 MOA
Parallax Setting Parallax Free
Length 10cm / 4 inches
Weight 246 grams / 8.7 ounces
