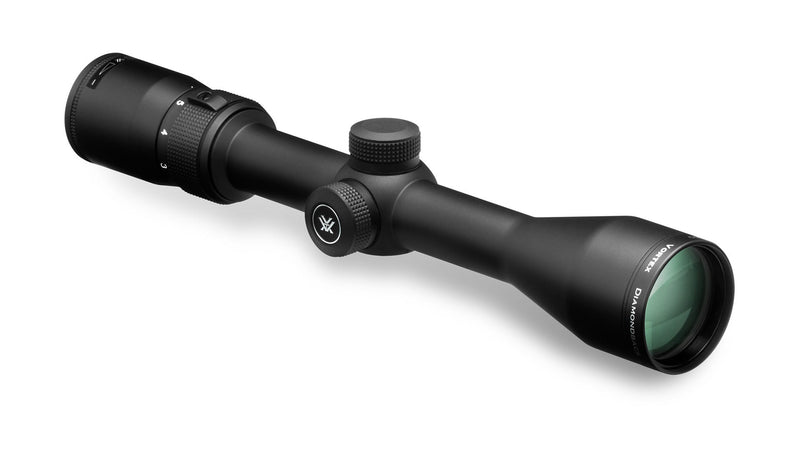

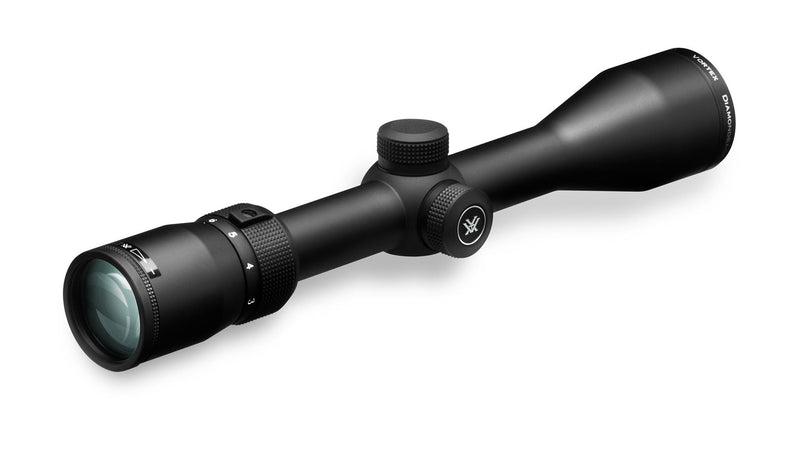

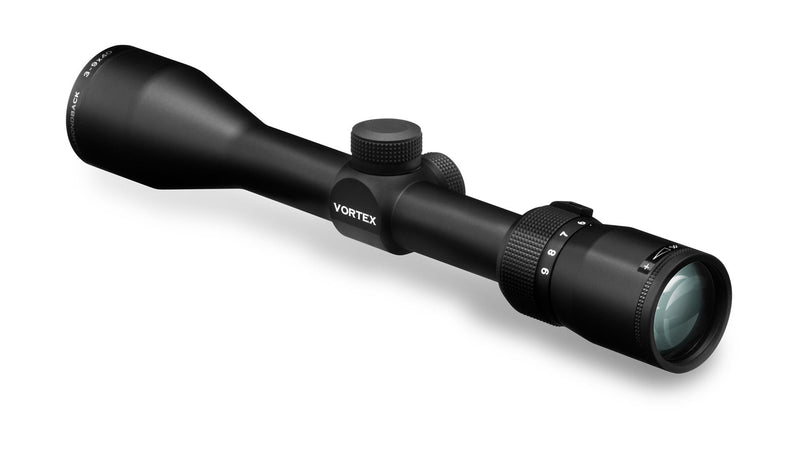

The Diamondback is loaded with features!
First, the solid one piece aircraft grade aluminium alloy construction makes the Diamondback riflescope virtually indestructible; it is highly resistant to magnum recoil.
Argon purging puts waterproof and fogproof performance on the agenda, and advanced fully multi-coated optics raise the stakes when crystal clear, tack sharp images appear in the crosshairs.
Look for all this and more in a riflescope that you would expect to cost quite a bit more, but doesn't. We can live with that!
3-9x40 riflescope is ideal for big game, muzzleloader, and slug shotgun applications.

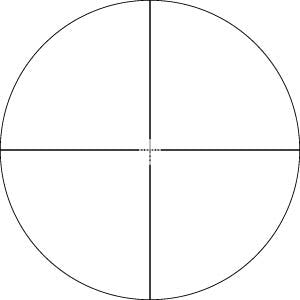

Dead-Hold BDC Reticle (MOA)
Customized hash mark design helps eliminate guesswork on hold over and windage corrections. Good for hunting/shooting at varying ranges where estimating hold over is a concern.
Fully Multi-Coated Lenses - Increase light transmission with multiple anti-reflective coatings on all air-to-glass surfaces.
One Inch Tube - Standard tube diameter for most American riflescopes.
One Piece Tube - Maximizes alignment for improved accuracy and optimum visual performance as well as strength and water resistance.
Aircraft Grade Aluminium - Premium grade of aluminium, valued for fatigue resistance.
Precision Glide Erector System - Uses premium components in the zoom lens mechanism, ensuring smooth magnification changes under the harshest conditions.
Fast Focus Eyepiece - Allows quick and easy reticle focusing.

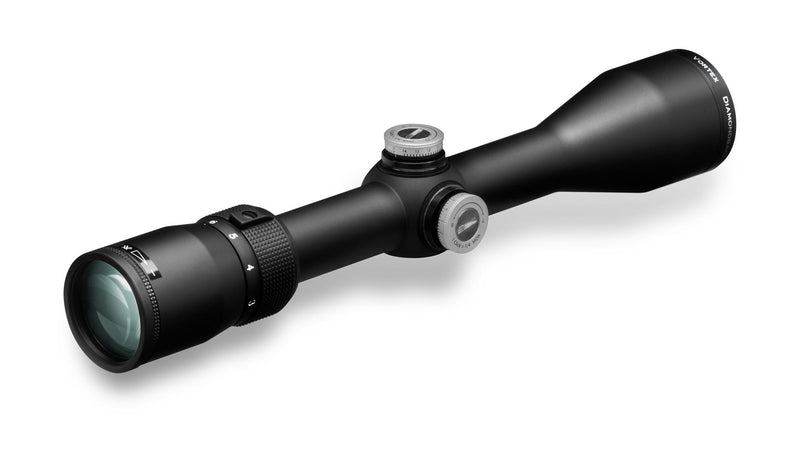

Low Profile Turrets - Less susceptible to accidental impact damage.
Reset Turrets - Allow re-indexing of the turret housing to zero after sighting in the riflescope; generally requires use of a coin or wrench.
Waterproof - O-ring seals prevent moisture, dust, and debris from getting inside the tube, ensuring reliable performance in all environments.
Fogproof - Filled with argon gas to inhibit internal fogging.
Magnification - 3-9X
Objective Lens Diameter - 40 mm
Eye Relief - 3.3 inches
Field of View - 44.6-14.8 feet/100 yards
Tube Size - 1 inch
Turret Style - Capped
Adjustment Graduation - 1/4 MOA
Travel per Rotation - 15 MOA
Max Elevation Adjustment - 70 MOA
Max Windage Adjustment - 70 MOA
Parallax Setting - 100 yards
Length - 11.7 inches
Weight - 14.4 ounces
All Vortex Products bought from Extravision are covered by the Australian Vortex VIP Warranty
Our warranty is about you, not us. It's about taking care of you after the sale.
The VIP stands for a Very Important Promise to you, our customers. We will repair or replace your Vortex product in the event it becomes damaged or defective—at no charge to you other then return post from you to us. It doesn't matter how it happened, whose fault it was, or where you purchased it. You can count on the VIP Warranty for all riflescopes, red dots, rangefinders, binoculars, spotting scopes and monoculars.
•Unlimited Lifetime Warranty
•No warranty card to fill out
•No receipt needed to hang on to
If you ever have a problem, no matter the cause, we promise to take care of you.
The VIP warranty does not cover loss, misuse, theft or deliberate damage to the product.
