Description
TAKE YOUR PLACE AT THE TOP OF THE FOOD CHAIN.
When success rides on the perfect shot, rely on the exceptional versatility and optical performance of Viper® HD riflescopes. From predators to big game, river bottoms to the Rockies, there’s a field-proven configuration for every hunting application. Ultra-rugged. Remarkably adaptable. Each member of the Viper® HD family delivers outstanding image clarity, resolution, and sharpness to ensure your target comes into view with sharp detail. Viper® HD also boasts enhanced features for unmatched accuracy at extended ranges while excelling in the low light of dawn and dusk when game is most active.
HD OPTICAL SYSTEM
Optimized with select glass elements to deliver exceptional resolution, cut chromatic aberration and provide outstanding color fidelity, edge-to-edge sharpness and light transmission.
ILLUMINATED RETICLE
Provides precise aiming under low-light conditions.
30mm MAIN TUBE
For increased travel.
| Lengths | |||||
|---|---|---|---|---|---|
| L1 | L2 | L3 | L4 | L5 | L6 |
| 15.2 | 2.1 | 1.8 | 5.5 | 6.3 | 3.4 |
| Heights | |
|---|---|
| H1 | H2 |
| 2.3 | 1.7 |
FEATURES
| HD Optical System | Optimized with select glass elements to deliver exceptional resolution, cut chromatic aberration and provide outstanding color fidelity, edge-to-edge sharpness and light transmission. |
|---|---|
| Illuminated Reticle | Provides precise aiming under low-light conditions. |
| 30mm Main Tube | For increased travel. |
| Exposed Locking Elevation Turret | Integrated locking mechanism prevents accidental adjustments. Elevation turret provides fast, accurate, easily read elevation adjustments. |
| RevStop® Zero System | For a rock-solid return to zero after turret adjustments. |
| Fully Multi-Coated Lenses | Anti-reflective coatings on all air-to-glass surfaces provide increased light transmission for greater clarity and low-light performance. |
| ArmorTek® | Ultra-hard, scratch-resistant coating protects exterior lenses from scratches, oil and dirt. |
| Argon Gas Purged | Gas purged and O-ring sealed for fogproof and waterproof performance in all conditions. |
| Fast Focus Eyepiece | Allows quick and easy reticle focusing. |
| Aircraft-Grade Aluminum | Constructed from a solid block of aircraft-grade aluminum for strength and rigidity. |
| Low Glare Matte Black Anodize | Corrosion and wear resistant anodization provides low-glare matte surface and helps camouflage the shooter's position. |
| Single-Piece Tube | Maximizes alignment for improved accuracy and optimum visual performance, as well as ensures strength and waterproofness. |
| Waterproof | Designed to withstand harsh weather conditions. |
| Fogproof | Nitrogen gas purging prevents internal fogging over a wide range of temperatures. |
| Shockproof | Designed to withstand the highest levels of recoil and impact. |
SPECIFICATIONS
| Magnification | 5-25x |
|---|---|
| Objective Lens Diameter | 50 mm |
| Focal Plane | Second Focal Plane |
| Reticle | VMR-3 (MRAD) |
| Turret Style | Exposed Elevation Capped Windage |
| Tube Size | 30 mm |
| Adjustment Graduation | .1 MRAD |
| Parallax Setting | 20 yds. - ∞ |
| Max Windage Adjustment | 12.4 MRAD |
| Max Elevation Adjustment | 20MRAD |
| Travel Per Rotation | 10 MRAD |
| Total Elevation Adjustment w/ RevStop® installed | 18.9 MRAD |
| Field of View | 24.0' - 4.7' |
| Eye Relief | 3.4" |
| Length | 15.2" |
| Weight | 25.0 oz |

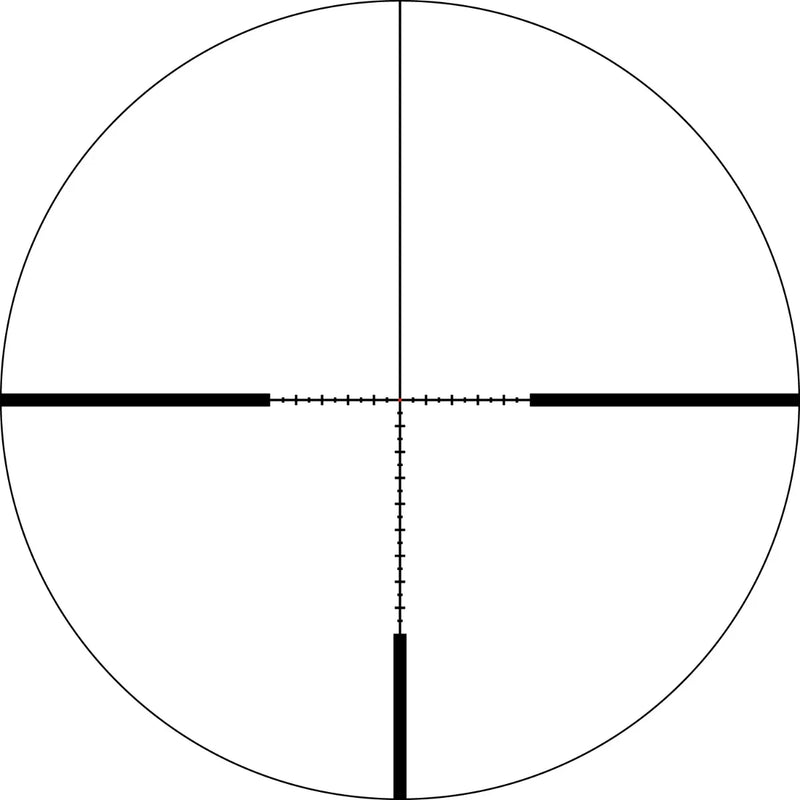

RETICLE - VMR-3 (MRAD)
Designed to maximize long-distance shooting and ranging abilities, the VMR-3 reticle can be used to effectively determine ranges, holdovers, windage corrections, and moving target leads. The fine center crosshair subtensions on the VMR-3 reticle were carefully chosen to provide the optimum balance between precision aiming and low-light visibility.
