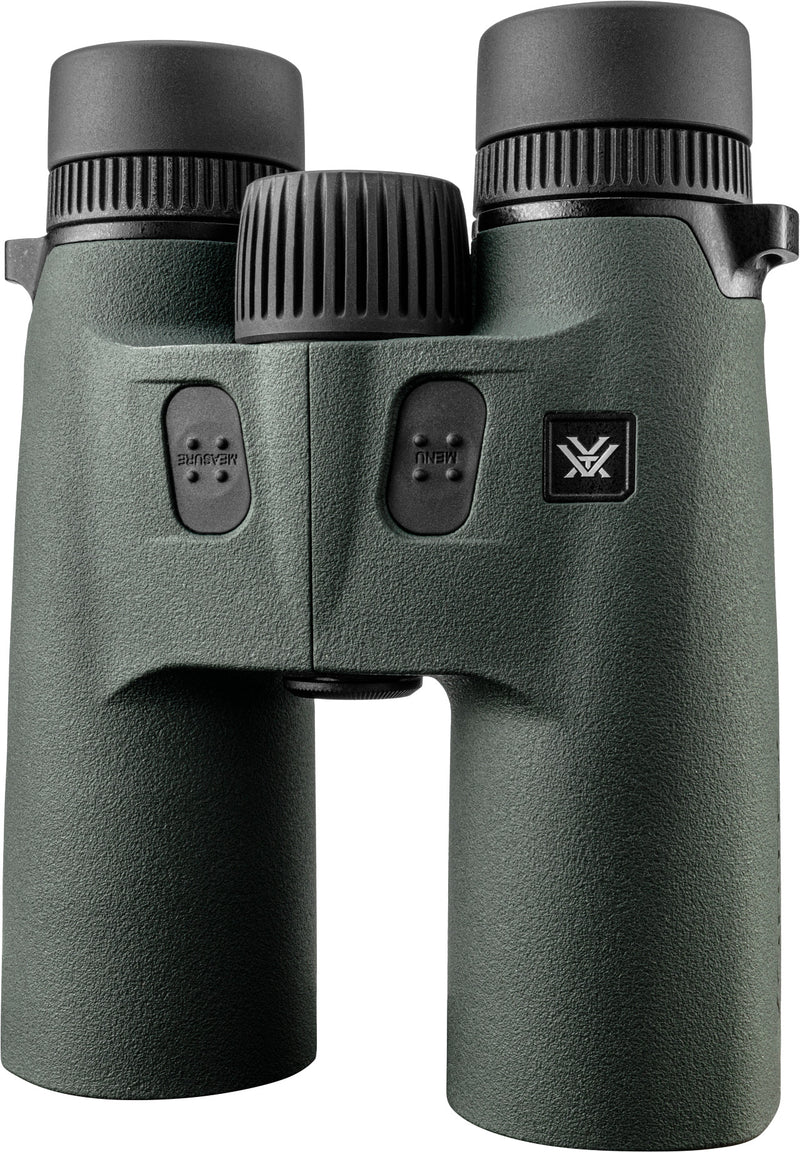

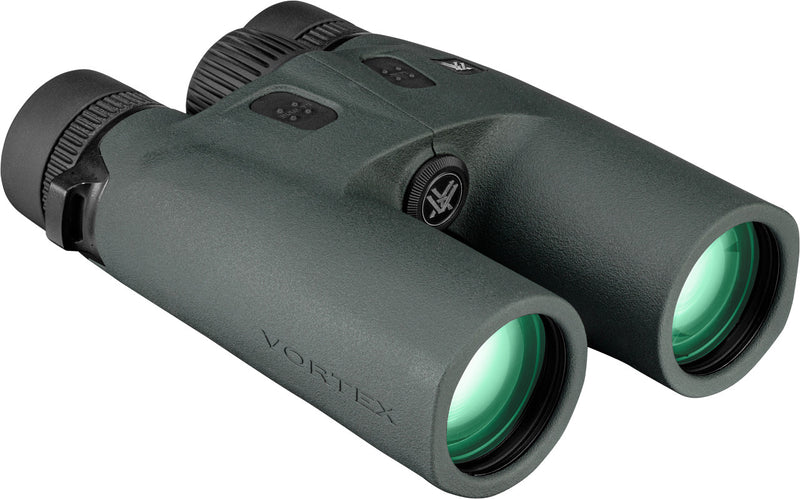

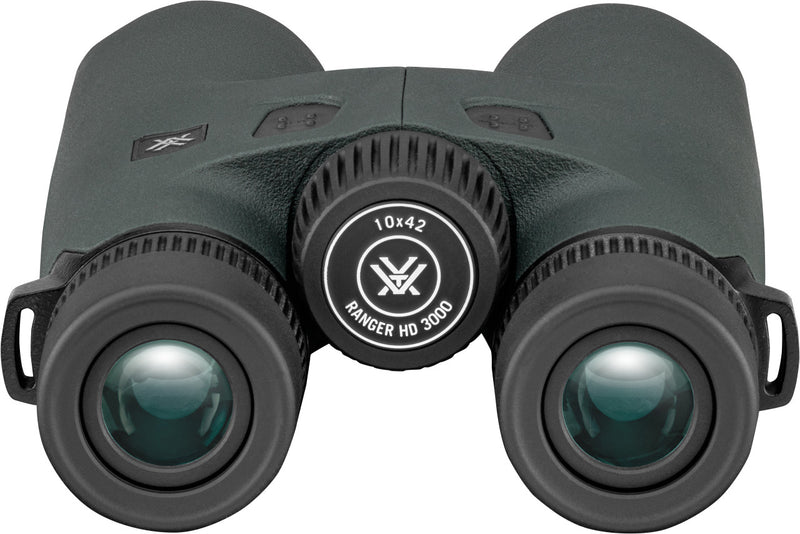

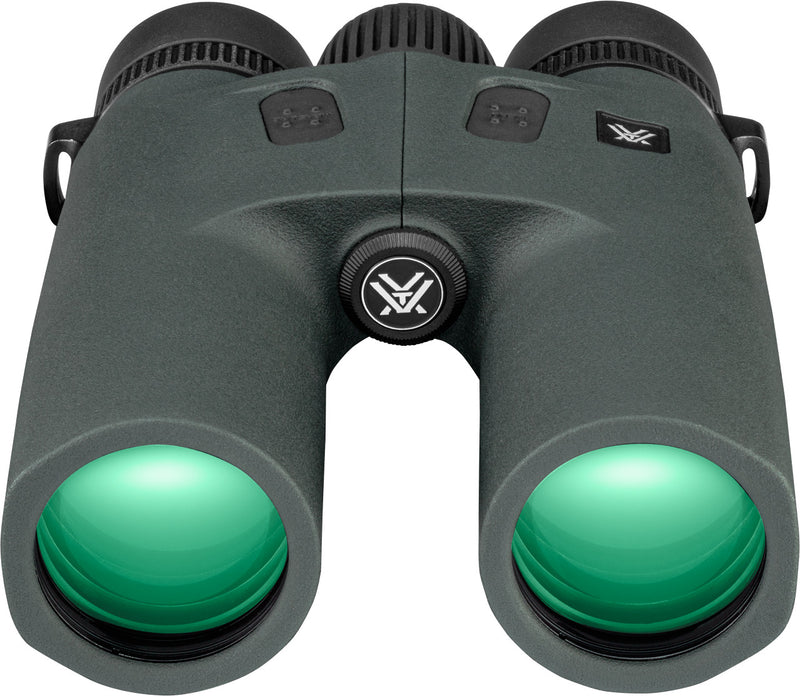

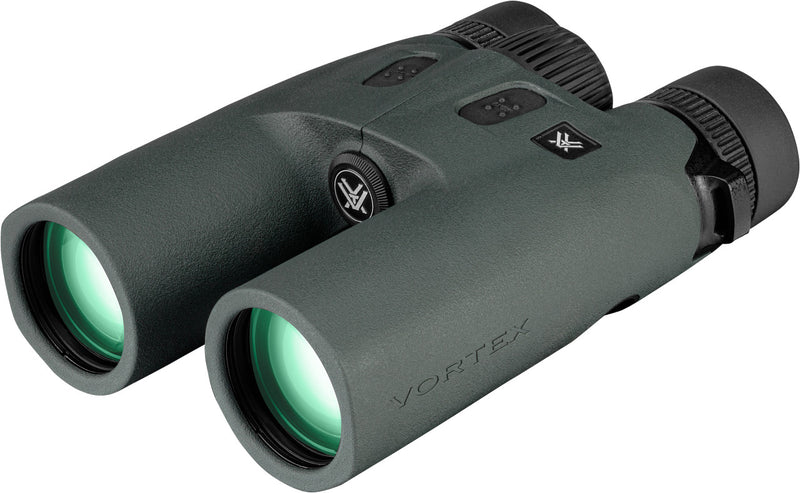

Redefine readiness with the Ranger® HD 3000 LRF Binocular. Built for hardworking hunters, its slim design, HD clarity, and precise ranging capability combine to simplify and streamline your gear without compromising performance. In moments where speed and stealth are essential, it’s an essential tool to keep you seconds ahead.
Features
Ranging Modes
Horizontal Component Distance (HCD): Displays the slope angle compensated distance to the target.
Line of Sight (LOS): Displays the actual line of sight range.
SCAN Feature: Displays continuous distance readings while panning across a landscape.
Target Modes
Normal Mode: The standard mode providing the target's range with the strongest range result. Recommended for most situations.
First Mode: Displays the closest distance when ranging. Ideal for ranging a smaller target in front of other larger or more reflective objects.
Last Mode: Displays the farthest distance when ranging. Ideal for ranging a specific target behind a group of objects like brush, trees, rocks, etc.
HD Optical System
Optimized with select glass elements to deliver exceptional resolution, cut chromatic aberration and provide outstanding color fidelity, edge-to-edge sharpness and light transmission.
Red OLED Display
Optimized for low light.
Fully Multi-Coated Lenses
Anti-reflective coatings on all air-to-glass surfaces provide increased light transmission for greater clarity and low-light performance.
Nitrogen Gas Purged
Gas purged and O-ring sealed for fogproof and waterproof performance in all conditions.
ArmorTek®
Ultra-hard, scratch-resistant coating protects exterior lenses from scratches, oil and dirt.
Ranging Format
Range in yards or meters.
Rubber Armor
Provides a secure, non-slip grip, and a durable external protection.
Waterproof
Designed to withstand harsh weather conditions.
Fogproof
Designed to withstand a wide range of temperatures.
Shockproof
Designed to withstand the highest levels of impact.
Tripod Adaptable
Compatible with a tripod adapter, allowing use on a tripod or car window mount.
Specifications
Magnification
10x
Objective Lens Diameter
42 mm
Eye Relief
17.0mm
Angular Field of View
6.4º
Close Focus
6.0'
Interpupillary Distance
55mm - 74mm
Linear Field of View
335' @ 1000 yds.
Range Reflective (yards)
Up to 3000 yds.
Range Tree (yards)
Up to 1800 yds.
Range Deer (yards)
Up to 1500 yds.
Min Range
6 yds.
Height
6.7"
Width
5.1"
Weight
32.4 oz.
